NavSource Online: Amphibious Photo Archive

Landing Craft Tank
HM LCT-2284
 ex
 LCT(5)-284


LCT(5)-284 was transferred Lend-Lease to the UK
Landing Craft Tank (Mark 5) Class:
  • Laid down in 1942 at Missouri Valley Bridge & Iron Co., Leavenworth, KS.
  • Launched in August 1942
  • Delivered, 1 September 1942
  • LCT(5)-284 never saw service with the US Navy
  • Transferred to Great Britain under the lend-lease program, redesignated HM LCT-2284
  • Struck from the Naval Register, 9 June 1944
  • Final Disposition, HM LCT-2284 was in transit from the USA to the UK aboard SS Kosmos II and was lost, 29 October 1942, when SS Kosmos II while sailing with convoy HX-212 was sunk by U-624
    Specifications:
    Displacement 285 t.(fl)
    Length 114' 2" (o.a.)
    Beam 32' 8"
    Draft
    limiting 3' 6"
    max.navigational 3' 6"
    Speed 10 kts.
    Range 700 nautical miles at 7 kts.
    Complement
    1 officer
    10 enlisted
    Cargo Capacity 150 short tons
    Armament
    two single 20mm AA gun mounts
    two .50 cal. machine guns
    Armor
    wheelhouse 2 1/2"
    gun shields 2"
    Fuel Capacity Diesel 80 Bbls
    Propulsion
    three Grey Marine 6-71 Diesel engines
    one Diesel-drive 20Kw 120V. D.C. Ships' service generator
    three propellers, 675shp
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By
    LCT-284

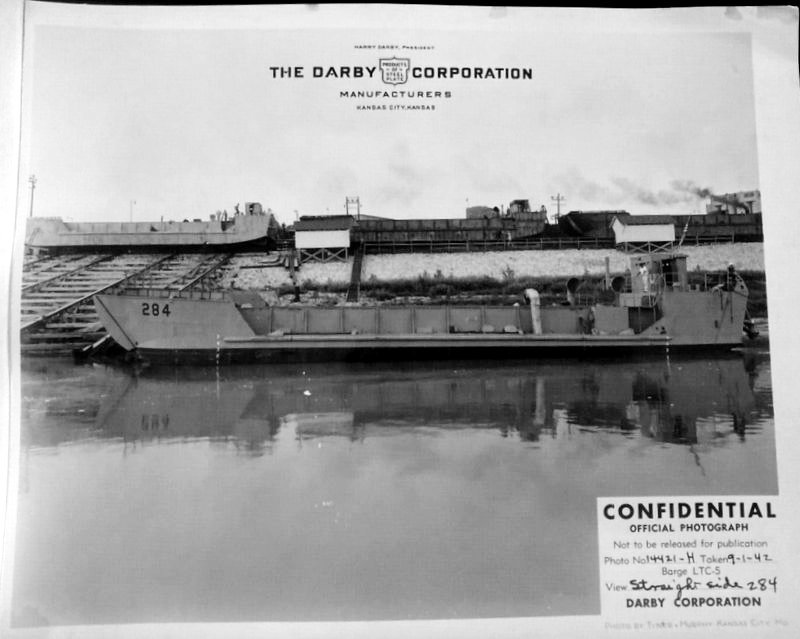

    1018028401    		 67k LCT(5)-284 after being launched, 1 September 1942, at Darby Products of Steel Plate Corp., Kansas City, KS.
    Darby Corporation photo by Tyner & Murphy Kansas City, MO.    		 Tommy Trampp
    There is no history record available for LCT(5)-284 / LCT-2284 at NavSource
