NavSource Online: Amphibious Photo Archive

USS LST-787


International Radio Call Sign:
November - Golf - Yankee - Echo
NGYE
Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - Combat Action Ribbon (retroactive-Iwo Jima) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal (2) - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)



USS LST-787 was manned by the US Coast Guard during World War II
LST-542 Class Tank Landing Ship:
  • Laid down, 2 July 1944, at Dravo Corp., Pittsburgh, PA.
  • Launched, 12 August 1944
  • Commissioned USS LST-787, 13 September 1944, LT. William S. Lawrence, USCGR in command
  • During World War II USS LST-787 was assigned to the Asiatic-Pacific Theater:
    LST Flotilla Twenty-Nine, CAPT. C. H. Peterson USCG (25);
    LST Group Eighty-Five, CDR. W. B. Millington, USCG (32);
    LST Division One Hundred Seventy and participated in the following campaigns:
    Asiatic-Pacific Campaigns
    Campaign and Dates Campaign and Dates
    Iwo Jima operation
    Assault and occupation of Iwo Jima, 19 to 28 February 1945
    Okinawa Gunto operation
    Assault and occupation of Okinawa Gunto, 2 April to 29 June 1945

  • Following World War II USS LST-787 was assigned to Occupation and China service in the Far East for the following periods:

    Navy Occupation Service Medal
    2 September to 10 October 1945
    29 October to 9 November 1945
  • Decommissioned, 27 May 1946
  • Struck from the Naval Register, 3 July 1946
  • USS LST-787 earned two battle stars for World War II service
  • Final Disposition, sold, 7 May 1948, to the Bethlehem Steel Co., Bethlehem, PA for scrapping
    Specifications:
    Displacement
    1,625 t.(lt)
    4,080 t.(fl) (sea-going draft w/1675 ton load)
    2,366 t. (beaching displacement)
    Length 328' o.a.
    Beam 50'
    Draft
    light 2' 4" fwd, 7' 6" aft
    sea-going 8' 3" fwd, 14' 1" aft
    landing 3' 11" fwd, 9' 10" aft (landing w/500 ton load)
    limiting 11' 2"
    maximum navigation 14' 1"
    Speed 11.6 kts. (trial)
    Endurance 24,000 miles @ 9kts. while displacing 3960 tons
    Complement
    13 officers
    104 enlisted
    Troop Accommodations
    16 officers
    147 enlisted
    Boats 2 LCVP
    Cargo Capacity (varied with mission - payloads between 1600 and 1900 tons)
    Typical loads
    One Landing Craft Tank (LCT), tanks, wheeled and tracked vehicles, artillery, construction equipment and military supplies. A ramp or elevator forward allowed vehicles access to tank deck from main deck
    Additional capacity included sectional pontoons carried on each side of vessel amidships, to either build Rhino Barges or use as causeways. Married to the bow ramp, the causeways would enabled payloads to be delivered ashore from deeper water or where a beachhead would not allow the vessel to be grounded forward after ballasting
    Armament (varied with availability when each vessel was outfitted. Retro-fitting was accomplished throughout WWII. The ultimate armament design for United States vessels was
    2 - Twin 40MM gun mounts w/Mk. 51 directors
    4 - Single 40MM gun mounts
    12 single 20MM gun mounts
    Fuel Capacity
    Diesel 4,300 Bbls
    Propulsion
    two General Motors 12-567A, 900hp Diesel engines
    single Falk Main Reduction Gears
    three Diesel-drive 100Kw 230V D.C. Ship's Service Generators
    two propellers, 1,700shp
    twin rudders

    Click On Image
    For Full Size Image
    Size Image Description Contributed
    By
    LST-787
    1016078704
    275k Aboard USS LST-787 a Coast Guard sailer leads his fellow Coast Guardsmen and Marines in singing hymns while gathered on the main deck of the ship. 18 February 1945, the day before the invasion of Iwo Jima begins.
    US National Archives Identifier 205585085, Local Identifier 26-G-4057, US Coast Guard Photo # 4057. Photo by Shepard.
    David Upton
    LST-787 16k USS LST-787 beached at Iwo Jima while Marines unload their equipment, circa 19 to 28 February 1945. Paul Burket LSM-341
    LST-787
    1016078705

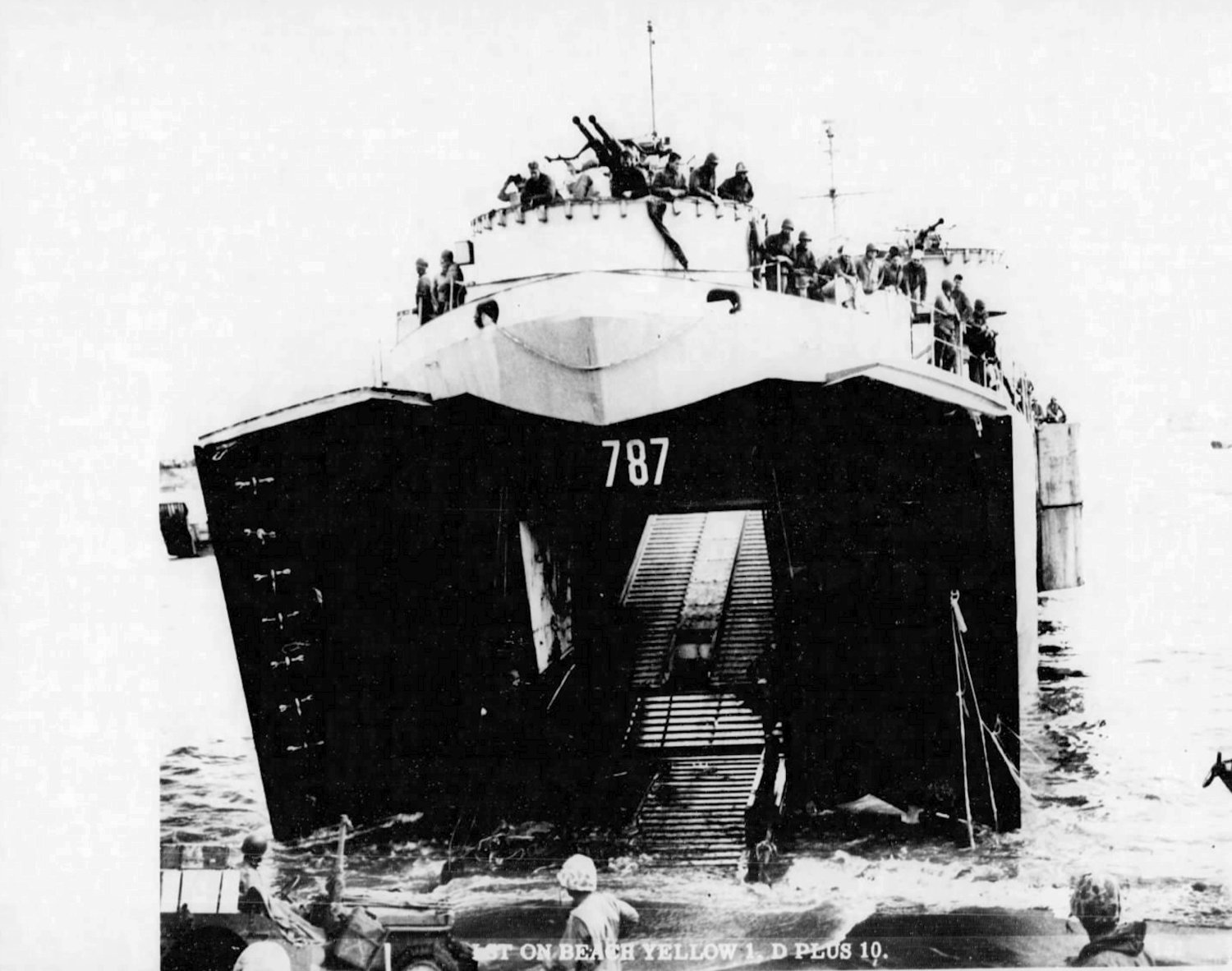

    212k USS LST-787 beached at Iwo Jima, D+10, 28 February 1945.
    From "COMTASKFOR 51 Photographic report of the Iwo Jima, Bonin Is. Operation" page 86. NARA catalog ID 4697018.
    David Upton
    LST-787 82k Iwo Jima Operation, 1945. LSTs, LSMs and other amphibious shipping off Iwo Jima, with LVTs and landing craft forming up to head for the beach. LSTs in the foreground are USS LST-787 (bottom, center) and USS LST-789 (left center). The latter has LCT-901 embarked. Photograph received by the Naval Photo Science Laboratory, Washington, D.C., 8 March 1945.
    US National Archives Photo # 80-G-303099, a US Navy photo now in the collections of the US National Archives.
    US Naval History and Heritage Command
    LST-787
    1016078703
    246k USS LST-787 off the fire-swept beaches of Iwo Jima known as Hell's Acre, 19 February 1945. Amtracks loaded with Marines emerge from the tank deck of LST-787 at right, and surge toward the beachhead.
    US National Archives Identifier 205585121, Local Identifier 26-G-4058, US Coast Guard Photo # 4058.
    David Upton
    LST-166
    1016016602
    5907k From left to right;
    the bow of USS LSM-166,
    USS LSM-33,
    Unknown LST,
    USS LST-166 (next to an unknown LST),
    USS LST-787 off Okinawa. The pillars of smoke are from two Japanese planes shot down during and air attack on the Okinawa invasion fleet, circa April 1945.
    National Archives Identifier 205586498, Local Identifier 26-G-4438, US Coast Guard Photo # 4438 by US Coast Guard photographer Cepheus Martin.
    David Upton
    LSM-135
    101413518
    293k USS LSM-135, and USS LST-787 unloading equipment of the 318th Fighter Group at Ie Shima, Ryukyu Islands, 29 April 1945. Driving Jeep Is Cpl. Giles N. Ragsdale, Malden, Missouri, 19th Fighter Squadron, 318Th Fighter Group. David Upton

    USS LST-787
    Dictionary of American Naval Fighting Ships (DANFS)
    Commanding Officers
    01LT. Lawrence, William S. USCGR13 September 1944 - 29 January 1946
    02LT. Ramstad, Andrew G. USCG29 January 1946 - 27 May 1946
    Courtesy Wolfgang Hechler and Ron Reeves
