NavSource Online: Amphibious Photo Archive

USS LST-606


International Radio Call Sign:
November - Foxtrot - Charlie - India
 NFCI
Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - American Campaign Medal - Asiatic-Pacific Campaign Medal (4) - World War II Victory Medal
Bottom Row - Navy Occupation Medal (with Asia clasp) - Philippines Presidential Unit Citation - Philippine Liberation Medal (2)
LST-542 Class Tank Landing Ship:
  • Laid down, 27 November 1943, at Chicago Bridge and Iron Co., Seneca, IL.
  • Launched, 3 April 1944
  • Commissioned USS LST-606, 24 April 1944, LT. William R. Brooks, USNR, in command
  • During World War II USS LST-606 was assigned to the Asiatic-Pacific Theater and participated in the following campaigns:

    Asiatic-Pacific Campaigns
    Campaign and Dates Campaign and Dates
    Western Caroline Islands operation
    Capture and occupation of southern Palau Islands, 6 September to 14 October 1944     		Luzon operation
    Lingayen Gulf landings, 4 to 18 January 1945
    Leyte operation
    Leyte landings, 16 to 30 October and 12 to 25 November 1944     		Okinawa Gunto operation
    Assault and occupation of Okinawa Gunto, 1 April to 30 June 1945

  • For the Okinawa Gunto operation USS LST-606 was assigned to:
    LST Flotilla Fourteen, CAPT. E. E Seay USN (24);
     LST Group Forty-Two, CDR. G. E. Artz USN (34);
     LST Division Eighty-Four
  • Following World War II USS LST-606 was assigned to Occupation service in the Far East from 6 to 23 September 1945
  • Decommissioned, 13 May 1946
  • Struck from the Naval Register, 19 June 1946
  • USS LST-606 earned four battle stars for World War II service
  • Final Disposition, sold for scrapping, 19 April 1948, to Bethlehem Steel Co., Bethlehem, PA.
    Specifications:
    Displacement
    1,625 t.(lt)
    4,080 t.(fl) (sea-going draft w/1675 ton load)
    2,366 t. (beaching displacement)
    Length 328' o.a.
    Beam 50'
    Draft
    light 2' 4" fwd, 7' 6" aft
    sea-going 8' 3" fwd, 14' 1" aft
    landing 3' 11" fwd, 9' 10" aft (landing w/500 ton load)
    limiting 11' 2"
    maximum navigation 14' 1"
    Speed 11.6 kts. (trial)
    Endurance 24,000 miles @ 9kts. while displacing 3960 tons
    Complement
    13 officers
    104 enlisted
    Troop Accommodations
    16 officers
    147 enlisted
    Boats 2 LCVP
    Cargo Capacity (varied with mission - payloads between 1600 and 1900 tons)
    Typical loads
    One Landing Craft Tank (LCT), tanks, wheeled and tracked vehicles, artillery, construction equipment and military supplies. A ramp or elevator forward allowed vehicles access to tank deck from main deck
    Additional capacity included sectional pontoons carried on each side of vessel amidships, to either build Rhino Barges or use as causeways. Married to the bow ramp, the causeways would enabled payloads to be delivered ashore from deeper water or where a beachhead would not allow the vessel to be grounded forward after ballasting
    Armament (varied with availability when each vessel was outfitted. Retro-fitting was accomplished throughout WWII. The ultimate armament design for United States vessels was
    2 - Twin 40MM gun mounts w/Mk. 51 directors
    4 - Single 40MM gun mounts
    12 single 20MM gun mounts
    Fuel Capacity
    Diesel 4,300 Bbls
    Propulsion
    two General Motors 12-567A, 900hp Diesel engines
    single Falk Main Reduction Gears
    three Diesel-drive 100Kw 230V D.C. Ship's Service Generators
    two propellers, 1,700shp
    twin rudders
    Click On Image
    For Full Size Image    		 Size Image Description Source
    LST-606 133k USS LST-606 beached while off-loading tanks, date and location unknown. Colleen Holth for her father Clifford Roger Burnham GMC/2c USS LST-606

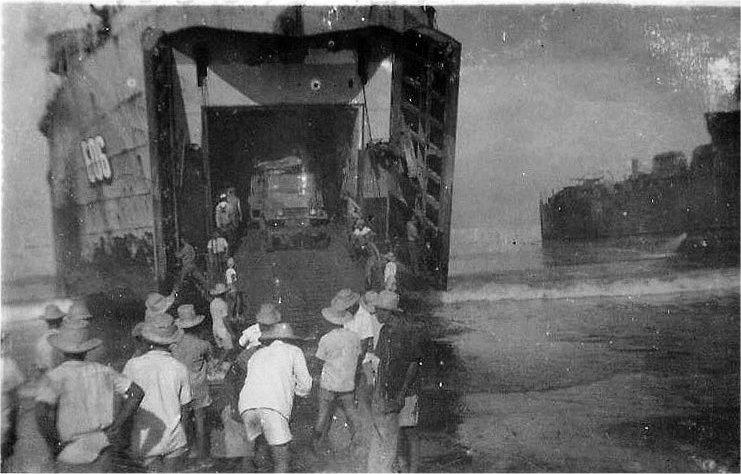

    LST-606 78k USS LST-606 beached while off-loading trucks, date and location unknown. Colleen Holth for her father Clifford Roger Burnham GMC/2c USS LST-606
    LST-606 70k USS LST-606 beached, date and location unknown. Colleen Holth for her father Clifford Roger Burnham GMC/2c USS LST-606
    LST-606 58k USS LST-606 40mm gun crew, date and location unknown. Colleen Holth for her father Clifford Roger Burnham GMC/2c USS LST-606
    LST-606 299k USS LST-606 and USS LST-649 moored at a U-shaped pontoon dock built by Naval Mobile Construction Battalion Seven at Okinawa, circa May 1945. LCDR Bob Johnson USN (Retired)
    USS LST-606
    Dictionary of American Naval Fighting Ships (DANFS)
    Commanding Officers
    01LT. Brooks, William R., USNR24 April 1944 - November 1945
    02LT. Anderson, R. D., USNRNovember 1945 - March 1946
    03LTjg. Haynes, William A., USNRMarch 1946 - 13 May 1946
    Courtesy Wolfgang Hechler and Ron Reeves
    Crew Contact And Reunion Information
    U.S. Navy Memorial Foundation - Navy Log
    Additional Resources and Web Sites of Interest
    The USS LST Ship Memorial
    LST Home Port
    State LST Chapters
    United States LST Association
