NavSource Online: Amphibious Photo Archive

USS LSM-143


International Radio Call Sign:
November - Victor - Kilo - Zulu
NVKZ
Awards, Citations and Campaign Ribbons


Precedence of awards is from to bottom, left to right
Top Row - Combat Action Ribbon (retroactive, 20 February 1945, Iwo Jima)
Bottom Row - American Campaign Medal - Asiatic-Pacific Campaign Medal (1) - World War II Victory Medal


LSM-1 Class Landing Ship Medium:
Laid down, 17 April 1944, at Charleston Navy Yard, Charleston, S.C.
  • Launched, 10 May 1944
  • Commissioned USS LSM-143, 30 June 1944, LT. Robert C. White USNR in command
  • During WWII USS LSM-143 was assigned to the Asiatic-Pacific Theater:
    LSM Flotilla Five, CDR. W. H. Carpenter USN (26);
    LSM Group Fifteen, LCDR. A. H. Hall USNR;
    LSM Division Twenty-Nine and participated in the following campaign:

    Asiatic-Pacific Campaign
    Campaign and Dates
    Iwo Jima operation
    Assault and occupation of Iwo Jima 20 February to 16 March 1945
  • Decommissioned, 14 June 1946, at Mare Island Navy Yard, Vallejo, CA.
  • Struck from the Naval Register, date unknown
  • USS LSM-143 earned one battle star for World War II service
  • Final Disposition, sold, February 1947, to Elloit Chemical Cleaning Co., San Francisco, CA., fate unknown
    Specifications:
    Displacement 520 t.(light), 743 t. (landing) 1,095 t.(fully loaded)
    Length 203' 6" ovl.
    Beam 34' 6"
    Draft
    light, 3' 6" forward, 7' 8" aft
    landing, 5' 3"
    fully loaded, 6' 4" forward, 8' 3" aft
    Speed 12.5 kts. (max.), (928 tons displacement)
    Endurance 4,900 miles @ 12kts.(928 tons displacement)
    Complement
    5 officers
    54 enlisted
    Armament
    one twin bow mounted 40mm AA gun mount
    six single 20mm gun mounts
    Vehicle/Boat Capacity 5 medium or 3 heavy tanks, or 6 LVT's, or 9 DUKW's
    Troop Accommodations
    2 officers
    46 enlisted
    Armor 10-lb. STS splinter shield to gun mounts, pilot house and conning station
    Fuel Capacity Diesel 1,225 Bbls
    Propulsion
    two General Motors 16-278A (non-reversible with airflex clutch) Diesel engines,. direct drive with 1,440 BHP each @ 720rpm
    Ship's Service Generators
    two Diesel-drive 100Kw 450V A.C.
    two Diesel-drive 20Kw 120V D.C.
    twin propellers 2,800shp

    Click On Image
    For Full Size Image
    Size Image Description Contributed
    By
    LSM-143 218k USS LSM-143 christening bottle holder, now in the collection of USS Yorktown Museum, Patriots Point, Charleston, S.C. Robert Hall USS Tidewater

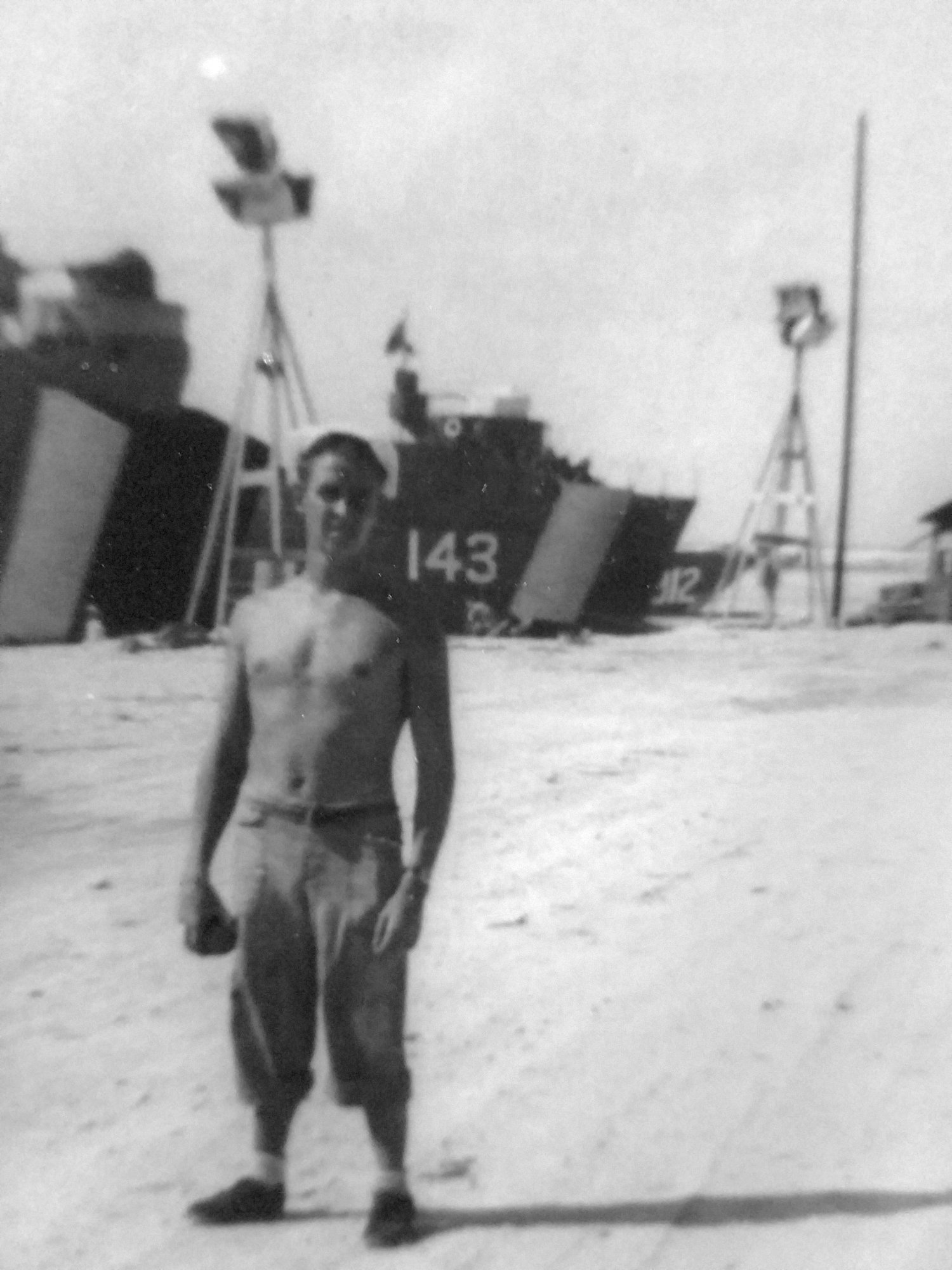

    LSM-143 300k USS LSM-143 beached, date and location unknown. Mike Running for his grandfather Delmar Garforth SM3c USS LSM-143
    LSM-143 62k Only the stern of USS LSM-143 is visible in this photo of her beached at Iwo Jima, date unknown. USS LSM-143 is up the beach beyond the LCVP in the foreground. Also of note is the seaplane in the harbor. USS LSM / LSMR Association
    Mona Island 107k USS LSM-143 with USS PC-590, left, and an unidentified YMS, right, aground on a reef at Okinawa, 9 October 1945 during Typhoon "Louise". Photo by David Sweeten USS Mona Island contributed by Henry Carr. Donation of David Sweeten Family.
    LSM-143 75k USS LSM-143 under way in San Francisco Bay, 1945-46.
    US Navy photo # NH 79857 from the collections of the US Naval Historical Center, courtesy D.M.McPherson, 1974.
    USS LSM / LSMR Association

    The history extract for USS LSM-143 is from LSM-LSMR Amphibious Forces, Vol. II. Paducah, Kentucky: Turner Publishing Company, © 1997. (ISBN 1-56311-389-9).
    Commanding Officers
    01LT. White, Robert C., USNR30 June 1944 - December 1945
    02LTjg. Merschel, John A., USNRDecember 1945 - March 1946
    03ENS. Bowden, Francis J., USNRMarch 1946 - 14 Juune 1946
    Courtesy Wolfgang Hechler
