NavSource Online: Amphibious Photo Archive

USS LST-868


International Radio Call Sign:
November - India - Uniform - Romeo
 NIUR
Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - China Service Medal (extended) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal (1) - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)
542 Class Tank Landing Ship:
  • Laid down, 31 October 1944, at Jeffersonville Boat & Machinery Co., Jeffersonville, IN.
  • Launched, 6 December 1944
  • Commissioned USS LST-868, 31 December 1944, LT. Edward H. Devoe USNR, in command
  • During World War II USS LST-868 was assigned to the Asiatic-Pacific Theater:
    LST Flotilla Thirty-One, CAPT. H. S. Covington USN (23);
     LST Group Ninety-Three CDR. E. R. Sperry USN (23);
     LST Division One Hundred Eighty-Four and participated in the following campaign:

    Asiatic-Pacific Campaigns
    Campaign and Dates
    Okinawa Gunto operation
    Assault and occupation of Okinawa Gunto, 21 to 30 June 1945

  • Following World War II USS LST-868 was assigned to Occupation and China service in the Far East for the following periods:

    Navy Occupation Service Medal
    China Service Medal (extended)
    30 October 1945 to 16 April 194630 October 1945 to 16 April 1946

  • Decommissioned, 9 August 1946
  • Struck from the Naval Register, 10 June 1947
  • Final Disposition, sold for scrapping, 19 December 1947, to Northern Metals Co., Philadelphia, PA.
  • USS LST-868 earned one battle star for World War II service
    Specifications:
    Displacement
    1,625 t.(lt)
    4,080 t.(fl) (sea-going draft w/1675 ton load)
    2,366 t. (beaching displacement)
    Length 328' o.a.
    Beam 50'
    Draft
    light 2' 4" fwd, 7' 6" aft
    sea-going 8' 3" fwd, 14' 1" aft
    landing 3' 11" fwd, 9' 10" aft (landing w/500 ton load)
    limiting 11' 2"
    maximum navigation 14' 1"
    Speed 11.6 kts. (trial)
    Endurance 24,000 miles @ 9kts. while displacing 3960 tons
    Complement
    13 officers
    104 enlisted
    Troop Accommodations
    16 officers
    147 enlisted
    Boats 2 LCVP
    Cargo Capacity (varied with mission - payloads between 1600 and 1900 tons)
    Typical loads
    One Landing Craft Tank (LCT), tanks, wheeled and tracked vehicles, artillery, construction equipment and military supplies. A ramp or elevator forward allowed vehicles access to tank deck from main deck
    Additional capacity included sectional pontoons carried on each side of vessel amidships, to either build Rhino Barges or use as causeways. Married to the bow ramp, the causeways would enabled payloads to be delivered ashore from deeper water or where a beachhead would not allow the vessel to be grounded forward after ballasting
    Armament (varied with availability when each vessel was outfitted. Retro-fitting was accomplished throughout WWII. The ultimate armament design for United States vessels was
    2 - Twin 40MM gun mounts w/Mk. 51 directors
    4 - Single 40MM gun mounts
    12 single 20MM gun mounts
    Fuel Capacity
    Diesel 4,300 Bbls
    Propulsion
    two General Motors 12-567A, 900hp Diesel engines
    single Falk Main Reduction Gears
    three Diesel-drive 100Kw 230V D.C. Ship's Service Generators
    two propellers, 1,700shp
    twin rudders
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By

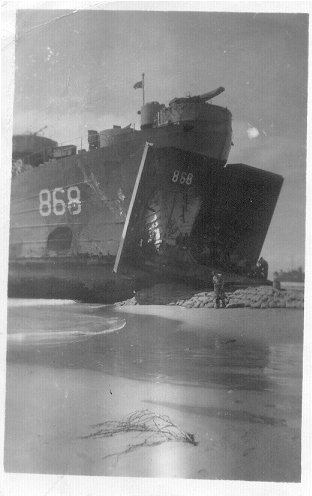

    LST-868 33k USS LST-868 beached at Saipan in 1945.
    Photo by Fred Storms MoM/c,    		 Warren Storms for his father Fred Storms MoM/c USS LST-868
    LST-868 25k USS LST-868 beached at Saipan in 1945.
    Photo by Fred Storms MoM/c,    		 Warren Storms for his father Fred Storms MoM/c USS LST-868
    USS LST-868
    Dictionary of American Naval Fighting Ships (DANFS)
    Commanding Officers
    01LT. Devoe, Edward H., USNR31 December 1944 - December 1945
    02LT. Davis, Larry, USNRDecember 1945 - March 1946
    03LTjg. Brown, James E., USNRMarch 1946 - 9 August 1946
    Courtesy Wolfgang Hechler and Ron Reeves
